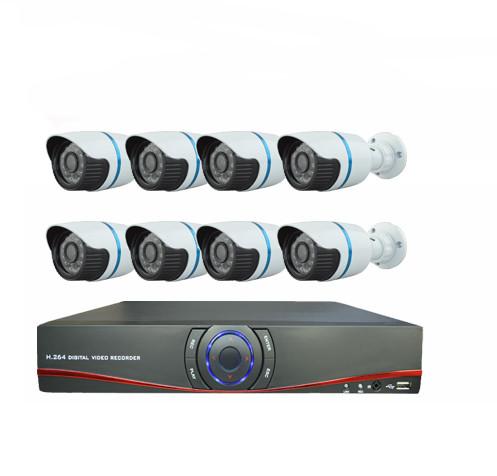

    3.6mm Security Camera Set 1000tvl DVR Cctv Kamera Kit System 8ch

    Ask Lasest Price
    Brand Name : Seeker
    Model Number : SK-A5208B
    Delivery Time : 3 days for sample, 5-25 days for production
    Payment Terms : T/T, Paypal, Westernunion
    Certification : CE
    Supply Ability : 50000pcs/M
    • Product Details
    • Company Profile

    3.6mm Security Camera Set 1000tvl DVR Cctv Kamera Kit System 8ch

    3.6mm Security Camera Set 1000tvl DVR Cctv Kamera Kit System 8ch


    Features


    With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.


    H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.


    Support 4ch D1, 2ch D1 +6ch CIF,16ch CIF full real-time encoding,multi-channel full real-time playback and decoding simultaneously.


    Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.


    Support various mobile monitoringï iPhoneï Œ Windows Mobile ŒBlackBerry ŒSymbian,Android .


    Support TV、VGA and HDMI output simultaneously Œ VGA HDMI support 1024*768 HD output,leading the trend in HD resolution output technology


    Similar to Windows operating style, easy to get started with powerful mouse right-click function.


    Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.


    Support IE Chrome Firefox Safari browsers.


    3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.


    Support 2 USB2.0 ports Œto realise USB mouse backup burn upgrade and other operations steadily.


    Support more than 20 languages English (Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.) no nation boundaries.


    Display flexibly, free to replace boot interface.


    Specification

    SystemMain processorHi3520D
    Videovideo compressionH.264(High Profile)
    Encode8*960H@12fps
    Decode4*960H@12fps
    Multi-mode inputPure Analog:4*AHD-L4*D1
    Mixed:2*D1(analog) +1*720P(network)+1* AHD-L (network)
    Pure Network:1*1080P1*720P+3*D1
    AudioAudio compressionG.711A
    Intercomsupport
    Recording and PlaybackRecord modeManual>alarm>motion detection>timing
    Playback Channels4 (pure local input mode)
    Storage and backupSpace occupation960H:12~20G/ day*channel
    720P:20G~30G/ day*channel
    audio:691.2M/ day*channel
    Backup modeNetwork backup,USB HDD, USB writer,SATA writer
    InterfaceVideo input8 BNC
    Video output1ch VGA,1ch HDMI,1ch TV
    Audio input4ch RCA
    Audio output1ch RCA
    Alarm input
    Alarm output
    Network interfaceRJ45 10M/100M Adaptive Ethernet port
    PTZ controlRS485 support multiple PTZ protocols
    USB2 USB ports
    Hard disk1 SATA(Each maximum support 4T )
    Wireless3G,WIFI(expand via USB)
    OtherPower12V/2A
    dimension255mm(length)* 225mm(width)* 45mm(height)
    Image Sensor1/3 " CMOS
    Horizontal Resolution1000TVL, Low Illumination
    PixelsPAL 976X582
    NTSC 976 X 494
    TV SystemPAL/NTSC
    IR LED24pcs
    IR Series Distance20-30M
    LensBoard Lens 3.6mm/F2.0
    Sync SystemInternal
    Usable Illumination0.01Lux/F2.0
    S/N Ratio≥48dB (AGC OFF)
    Gamma Correction0.45
    Video OutComposite Signal (1.0Vp-p, 75Ω)
    Scanning SystemPAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
    Electronic Shutter TimeAuto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec
    Operation Temperature-10C ~ +50C RH95% Max
    Storage Temperature-20C ~ +60C RH95% Max
    White BalanceAuto
    Power SourceDC12V 300mA (not included)
    Dimension13.5*6.6cm
    Weight0.5KG


    Package Include:

    8CH AHD DVR *1

    CMOS 1000TVL Camera*8

    18M CCTV Cable * 8

    12V/5A Power Supply *2

    Remote Control * 1

    CD *1

    User Manual *1
